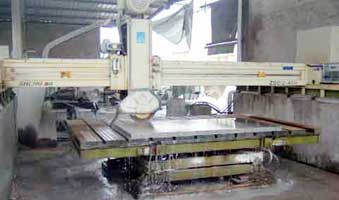

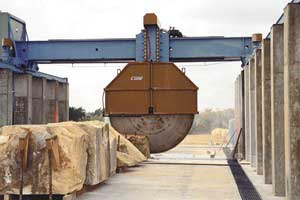

for Bridge Saw:

 |

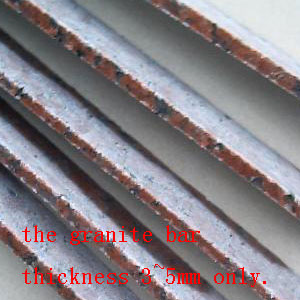

<<< Cutting effect:
the granite bar thickness 3~5mm only. |
Size: 10"~80" (250mm~2000mm)
Technical specs:
1, Cutting material: medium and hard granite (red color).
2, Cutting depth: 30mm
3, Surface Tolerance: <±0.10mm
4, Diamond blade size: dia.350x3.2x10mm(25T, "U" shape narrow
slot)
5, Bond choice as per the table below:
6, Our latest bond XGH4 has been approved by a client from Saudi Arabian
and the life shall be longer than the one from Italy. And the client
in Saudi Arabian shall be shown you if you need further technical info.
7, our granite blade has been approved by Saudi Arabia, China, India(specialy,
we sold a lot of granite blade and segments for the blade dia.350~500mm
in India), Turkey, Brazil, Egypt, Columbia, Israel, Poland, etc... So
our granite blade have almost approved by clients all over the world.
And we may show you the clients in these regions for your more understanding
if you want. So you may feel more confident for what we said.

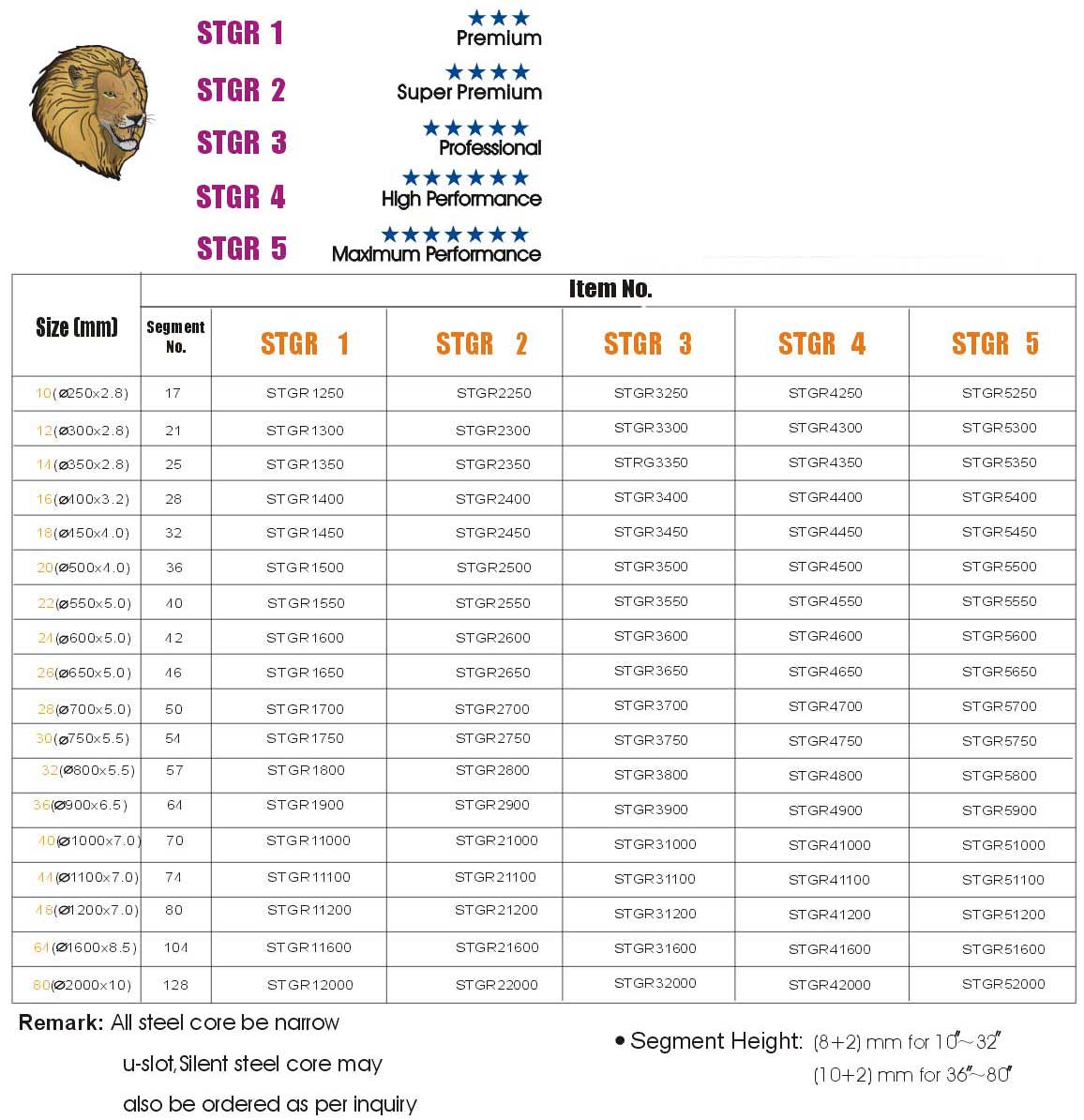

| type |
STGR 1 |
STGR 2 |
STGR 3 |
STGR4 |
| Fast cutting |
QGW-01-001BD(QGH4)
(4.4 m/min,397m)
JGW-01-001BD(JGH1)
(4.25m/min,470m)
|
|
QGW-03-001BD(QGH3)
(4.8m/min,541m)
QGW-03-001BD(QGH2)
(4.3m/min,653m)
|
|
| Normal |
XGW-01-001B
(XGH2)
(3.8 m/min,470m)
XGW-01-001B
(XGH3), specially for very hard black granite in India. 3m/min
|
XGW-02-001B(XGH1)
(2.5m/min,1030m)
|
HGW-03-001B (HGH3)
4m/min, 904m |
HGW-04-001B(HGH4)
(4m/min,904m)
|
| Long life |
HGW-01-001BB(HGH2)
(3. 6m/min,516m)
|
|
HGW-03-001BB (QGH1)
2.5m/min,1736m |
HGW-04-001BB(HGH1)
(2.5m/min,1736m)
|
* Cutting performance may be different against actual application, all
information above only from the cutting in laboratory in RobtoL &
RobLion.
update: Mar. 28, 2011 |
