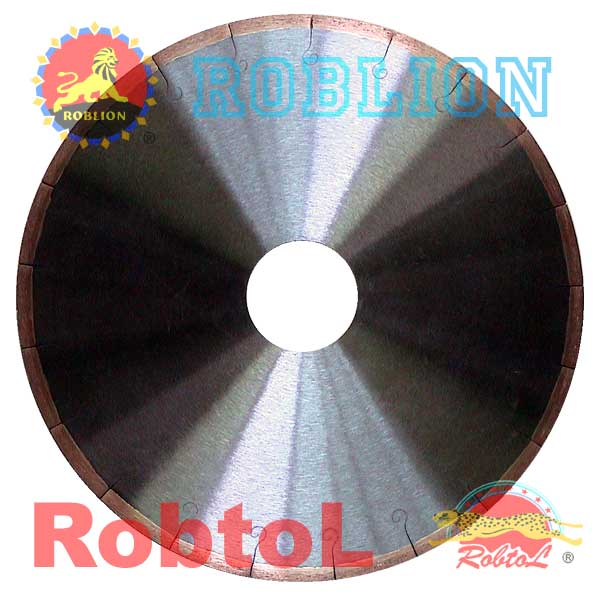

| Size (mm) |
Item No. |
| STWM 2 |
STWM3 |
STWM 4 |
| 12" (dia.300x2.4x50/25.4) |
STWM 212 |
STWM 312 |
STWM 412 |
| 14" (dia.350x2.8x50/25.4) |
STWM 214 |
STWM 314 |
STWM 414 |
| 16" (dia.400x3.0x50/25.4) |
STWM 216 |
STWM 316 |
STWM 416 |
| 18" (dia.450x3.2x50/25.4) |
STWM 218 |
STWM 318 |
STWM 418 |
| 20" (dia.500x3.6x50/25.4) |
STWM 220 |
STWM 320 |
STWM 420 |
Technical specs:
1, Cutting Material: Marble (white and yellow)
2, Cutting depth: 15~25mm
3, Cutting speed: 5m/min (Super fast)
4, Life: 8,000~10,000m (or 1800 sqm)
5, Surface Tolerance: <±0.10mm
6, Diamond blade diameter: dia.350x3.2x10mm(25T, "U" shape
narrow slot)
7, Cutting width: 5~6mm without chipping pieces (super smooth).
8, Bond Choice:
a, for very soft marble: XMW-01-001BC (XMH3)
b, for yellow marble (or soft and medium-hard marble): XMW-02-001BY
(XMH1)
c, for white marble (or medium-hard and hard marble): XMW-02-001BW (XMH2)
d, for very hard marble: XMW-04-001BI (XMH4)
e, for Agate: XNW-02-001BM (XNH5) (be avaible for dia.1200~2200mm)
f, for Agate: XNW-05-001BM (XNH6)
* Cutting performance may be different against actual application,
all information above only from the cutting in laboratory in RobtoL
& RobLion.
update: May 14, 2010 |
