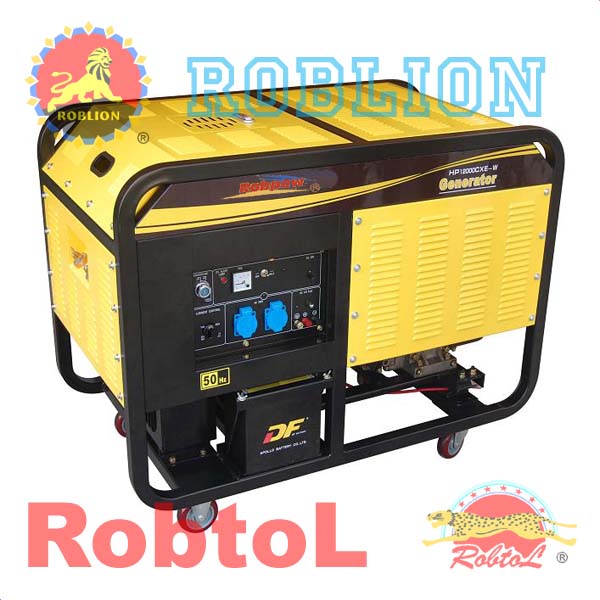

HPDD-10E

item ID:CEEN

Model		HPDD-10E
Alternator	Frequency(Hz)	50/60
	Rated power(KVA)	9.0/10
	Max.Power(KVA)	10/11
	Voltage(AC)(V)	220/380,230/400
	ENGINE speed(rpm)	3000/3600
	Power factor	cosф=1.0
ENGINE	ENGINE model	HP286FE
	Type	Double-cylinder,vertical,4-stroke,direct injection,air-cooled diesel ENGINE
	Continuous outpput(KVA)	11.5/13
	Bore×stroke(mm)	86×70
	Displacement(L)	0.812
	Fuel tank capacity(L)	18
	Lube-oil capacity(L)	1.7
GENERATOR SET	Starting system	Electric start
	Dry weight(kg)	170
	Dimensions(L×W×H)(mm)	850×620×720
