RobtoL & RobLion

发电机组

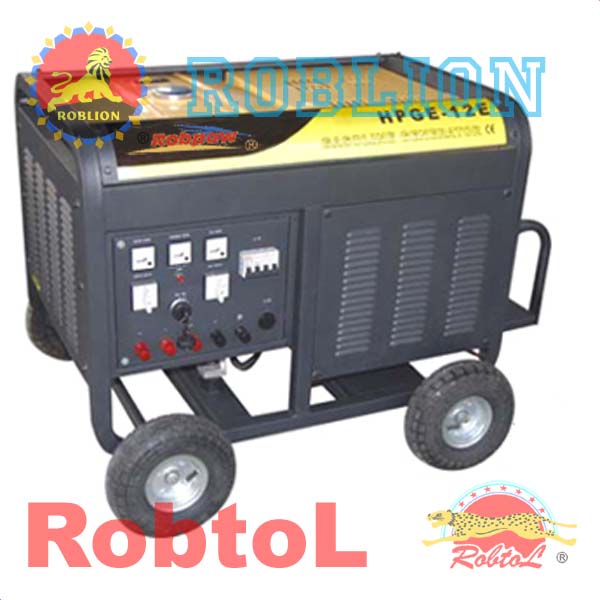

HPGD-12E

item ID:CEFA

Model		HPGD-10E	HPGD-12E
Alternator	Frequency(Hz)	50/60	50/60
	Rated power(KVA)	9.0/10	11/12
	Max.Power(KVA)	10/11	12/13
	Voltage(AC)(V)	220/380,230/400
	ENGINE speed(rpm)	3000/3600
	Power factor	cosф=1.0
ENGINE	ENGINE model	G×620	G×670
	Type	Air-cooled,4-stroke,OHV 90。 V-twin,vertical shaft
	Continuous outpput(KVA)	13.2(3600rmp)	15.8(3600rmp)
	Bore×stroke(mm)	77×66	77×22
	Displacement(L)	0.614	0.67
	Compression ratio	8.3:1
GENERATOR SET	Starting system	Electric start
	Dry weight(kg)	120	130
	Dimensions(L×W×H)(mm)	975×530×670

2011年11月5日
