| Model |
mm |
inch |
Taper mount |
mm |
mm |
KG |
Key |

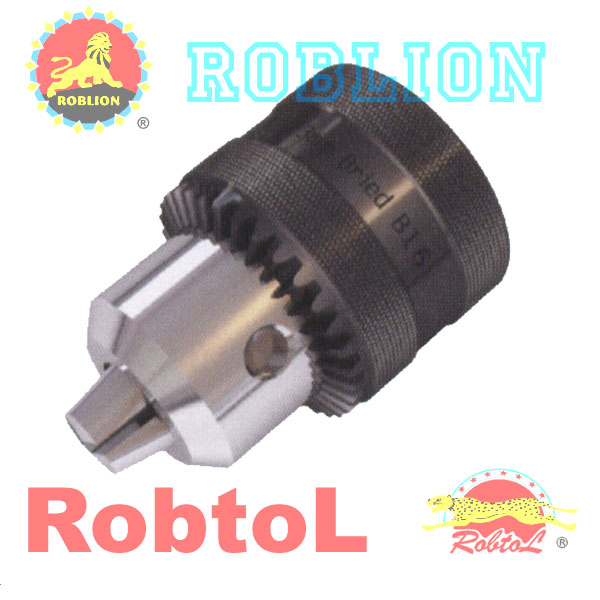

L2113 |
0.5-13 |
1/32-1/2 |
B16 |
53 |
87 |
0.680 |
Z13 series |
Product Features:
High precision & durability.It has been applied for metal cutting
machines.moreover,its fashional appearance will make the machines
extraodinary.
The applicable range:
Heavy-duty,ultra-heavy duty tasks,it is commonly used in lathe,miller,CNC
and woodworking machinery.It may endure high-speed cutting.
Accuracy inspection:
It utilizes two different diam.and length checkrod to examine the
radial skip.Large rod ¢ 3 length 105mm,small rod ¢ 6 length
65mm,The max.radial skip of this product will not exceed 0.16mm.It
reaches to national standard A Leavel accuracy criterion.The drillspanner
wheel hole hardness is HRC48-50,grip jaw nut is HRC53-55,spanner
wheel;external sleeve are HRC48-50.The rear aperuses the drill clamp
cone gauge(GB-11855) for its painted inspection.The contact-time
is no less than 85%.It is 70% higher than the national standard.Torque:GB/T6087-93
fixed input 24N.M. Output 14N.M.The product may maximumly input
50N.M. and output 7N.M. with no damage to various spares of the
drill chuck.
