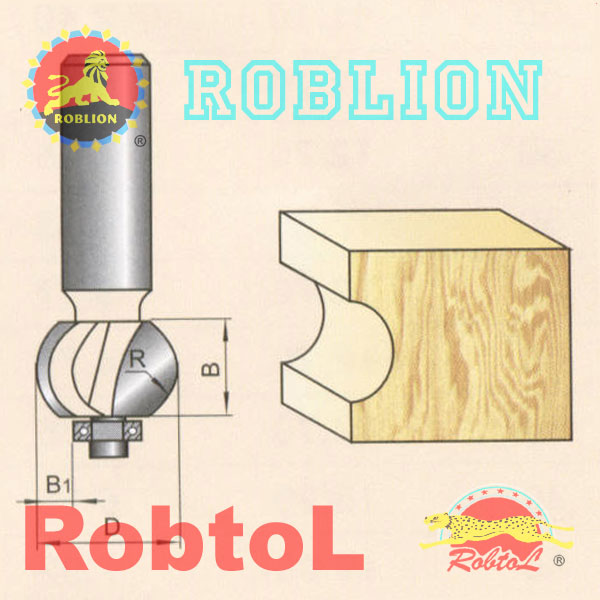

| 凸圆刀（YS08138） | item ID: RBIY |
订单编号 |
规格 |
直径 |
半径 |
切削弧度 |
切削宽度 |
| RB01 |
1/4 x 1/4 |
20.00 |
3.25 |
6.35 |
2.50 |
RB02 |
1/4 x 5/16 |
22.20 |
3.97 |
7.96 |
3.60 |
RB03 |
1/4 x 3/8 |
22.20 |
4.94 |
9.52 |
3.60 |
RB04 |
1/4 x 1/2 |
22.20 |
7.40 |
12.70 |
3.60 |
RB05 |
1/4 x 5/8 |
24.00 |
9.27 |
15.90 |
4.50 |
RB06 |
1/4x 3/4 |
25.40 |
11.32 |
19.05 |
5.20 |
RB07 |
1/4 x 7/8 |
26.40 |
13.65 |
22.20 |
5.70 |
RB08 |
1/4 x 1 |
26.40 |
16.99 |
25.40 |
5.70 |
RB09 |
1/2 x 1/4 |
20.00 |
3.25 |
6.35 |
2.50 |
RB10 |
1/2 x 5/16 |
22.20 |
3.97 |
7.96 |
3.60 |
RB11 |
1/2 x 3/8 |
22.20 |
4.94 |
9.52 |
3.60 |
RB12 |
1/2 x 1/2 |
22.20 |
7.40 |
12.70 |
3.60 |
RB13 |
1/2 x 5/8 |
24.00 |
9.27 |
15.90 |
4.50 |
RB14 |
1/2 x 3/4 |
25.40 |
11.32 |
19.05 |
5.20 |
RB15 |
1/2 x 7/8 |
26.40 |
13.65 |
22.20 |
5.70 |
RB16 |
1/2 x 1" |
26.40 |
16.99 |
25.40 |
5.70 |
RB17 |
1/2 x 1-1/8 |
28.60 |
18.43 |
28.60 |
6.80 |
RB18 |
1/2 x 1-1/4 |
28.60 |
21.93 |
31.75 |
6.80 |
RB19 |
1/2 x 1-3/8 |
28.60 |
25.78 |
34.90 |
6.80 |
RB20 |
1/2 x 1-1/2 |
28.60 |
30.08 |
38.10 |
6.80 |
RB21 |
1/2 x 1-5/8 |
28.60 |
34.70 |
41.27 |
6.80 |
RB22 |
1/2 x 1-3/4 |
28.60 |
39.80 |
44.45 |
6.80 |
RB23 |
1/2 x 2 |
28.60 |
50.83 |
50.80 |
6.80 |
